Produktdetails:
|
| Produktname: | BladeSystem-Faser-Transceiver | Eigenschaften: | SFP+ 10G-LR INSPEKTION 10km |
|---|---|---|---|
| Wellenlänge: | 1310nm | Komponenten: | DFB+PIN |
| Anwendung: | 10 Gigabit Ethernet | Schlüsselwörter: | 455886-B21, BladeSystem c-klasse10gb SFP+ LR |
| Hervorheben: | LC DOM 10GBASE-LR SMF,455886-B21 10GBASE-LR SMF,BladeSystem HPE SFP Module |
||

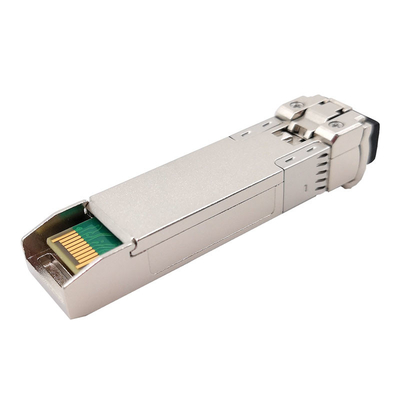

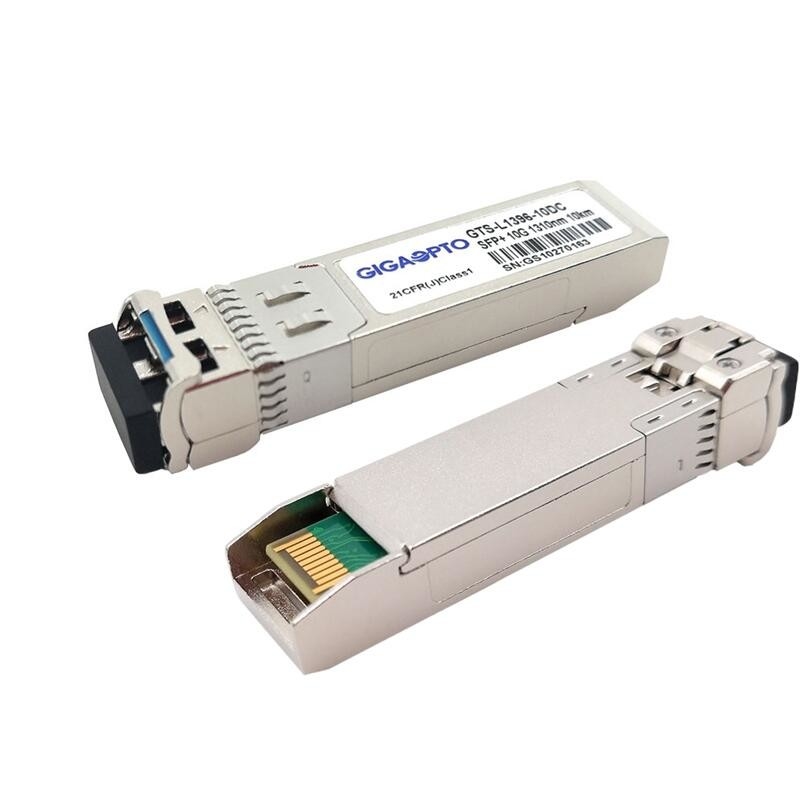

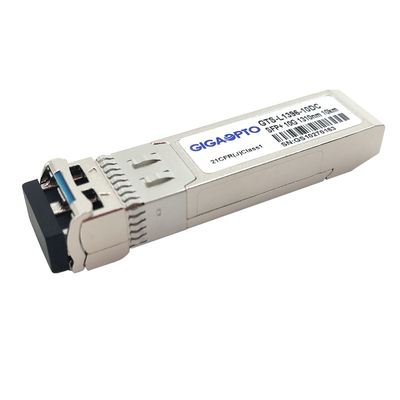

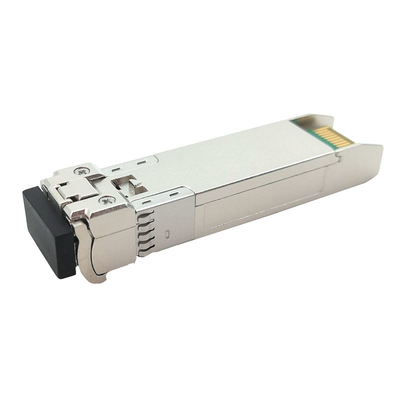

HPE BladeSystem c-Class 455886-B21 Compatible SFP+ 10G-LR SM 10km Fiber Transceiver
Description Of HPE BladeSystem c-Class 455886-B21 Compatible Optical Transceiver
This HPE BladeSystem c-Class 455886-B21 compatible optical transceiver is designed for 10 Gigabit connectivity and max links up to 10km over dual strand single mode fiber (SMF).
This 10GBASE-LR optical transceiver is factory pre-programmed with all the necessary configuration data for seamless network integration and perform identically to high-cost original HPE BladeSystem 455886-B21 transceiver, with excellent interoperation on HPE network equipment.
This HPE BladeSystem c-Class 455886-B21 compatible transceiver is fully compliant with SFF-8431, SFF-8432, IEEE 802.3ae standards. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
Specification Of HPE BladeSystem c-Class 455886-B21 Compatible Optical Transceiver
| Compatible Brand | HPE BladeSystem | P/N | 455886-B21 |
| Form Factor | SFP+ | Data Rate | 10G |
| Wavelength | 1310nm | Link | 10km @ 9/125μm SMF |
| Interface | Dual-LC | Media | single-mode fiber |
| Transmitter Part | DFB Laser | Receiver Part | PIN |
| TX Power (dBm) | -8.2~-0.5dBm | RX Sensitivity | <-14.4dBm |
| Optical budget | 6.2dB | Extinction Ratio | >3.5dB |
| Power Dissipation | ≤1.0W | RX Overload | >0.5dBm |
| Digital Diagnostic | With | Temperature Range | Standard 0~70°C/Industrial -40~85°C |
| OEM/ODM | Supported | Unit Weight | 25gram |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI | ||
Features Of HPE BladeSystem c-Class 455886-B21 Compatible Optical Transceiver
Application Of HPE BladeSystem c-Class 455886-B21 Compatible Optical Transceiver
Mechanical Dimensions Of HPE BladeSystem c-Class 455886-B21 Compatible Optical Transceiver
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
FAQ
Q: Why choose us ?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years experience in this field. Our advantage.
Q: Are your transceivers compatible?
Yes,our OEM compatible optical module all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista,HP, Huawei, Alcatel-Lucent Nokia, H3C and more.
Q: Can I have a sample order of HPE BladeSystem c-Class 455886-B21 compatible optical transceiver? What is your MOQ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.
Q: What is your payment terms ?
Usually,we need prepayment by T/T,West Union or Paypal.
Could also support L/C,Credit terms.
Q: Could I return the HPE BladeSystem c-Class 455886-B21 compatible optical transceiver if there is a quality problem ?
Yes,if there is a quality problem happen,we could accept free exchange.
Q: Could i use our own logo and label on this HPE BladeSystem c-Class 455886-B21 compatible optical transceiver?
Yes,we could provide a OEM service and make the products with your own label.
